Hydraulic Pump & Motor
Test Systems
High-performance hydraulic test systems engineered for production, laboratory, repair, and R&D applications. Technics Assembly & Test designs configurable pump and motor test stands for open-loop, closed-loop, and bi-directional operation with advanced automation, precision measurement, and repeatable test execution.
Hydraulic Pump & Motor
Test Systems
High-performance hydraulic test systems engineered for production, laboratory, repair, and R&D applications. Technics Assembly & Test designs configurable pump and motor test stands for open-loop, closed-loop, and bi-directional operation with advanced automation, precision measurement, and repeatable test execution.
ACCURATE & REPEATABLE
High-accuracy measurement and consistent test results.
HIGH EFFICIENCY
Variable-speed operation and intelligent controls help reduce energy consumption.
FULLY AUTOMATED
Recipe-based test sequences, pass/fail evaluation, and automatic reporting.
FLEXIBLE CONFIGURATION
Configurable for different pump and motor types, test procedures, and production needs.
Advanced Data Acquisition
Real-time measurement, trending, graphing, and traceability.
SAFE OPERATION
Engineered safety circuits, guarded test areas, alarms, and controlled shutdown.
Comprehensive Pump & Motor Testing Capabilities
From initial verification to full production testing. Technics Assembly & Test systems provide complete performance analysis for hydraulic pumps and motors.
PERFORMANCE TESTING
- Flow and pressure testing
- Torque and speed measurement
- Volumetric and overall efficiency
- Case drain flow measurement
- Variable speed testing
- Bi-directional operation
VALIDATION TESTING
- Internal and external leakage evaluation
- Case drain analysis
- Cold and hot performance
- Specification verification
- Customer-defined test procedures
DURABILITY TESTING
- Endurance and life testing
- Thermal cycling
- Continuous duty operation
- High-pressure testing
- Condition monitoring
QUALITY ASSURANCE
- Automated pass/fail evaluation
- Serial-number and barcode traceability
- Configurable acceptance criteria
- Exportable test reports
- Production data storage

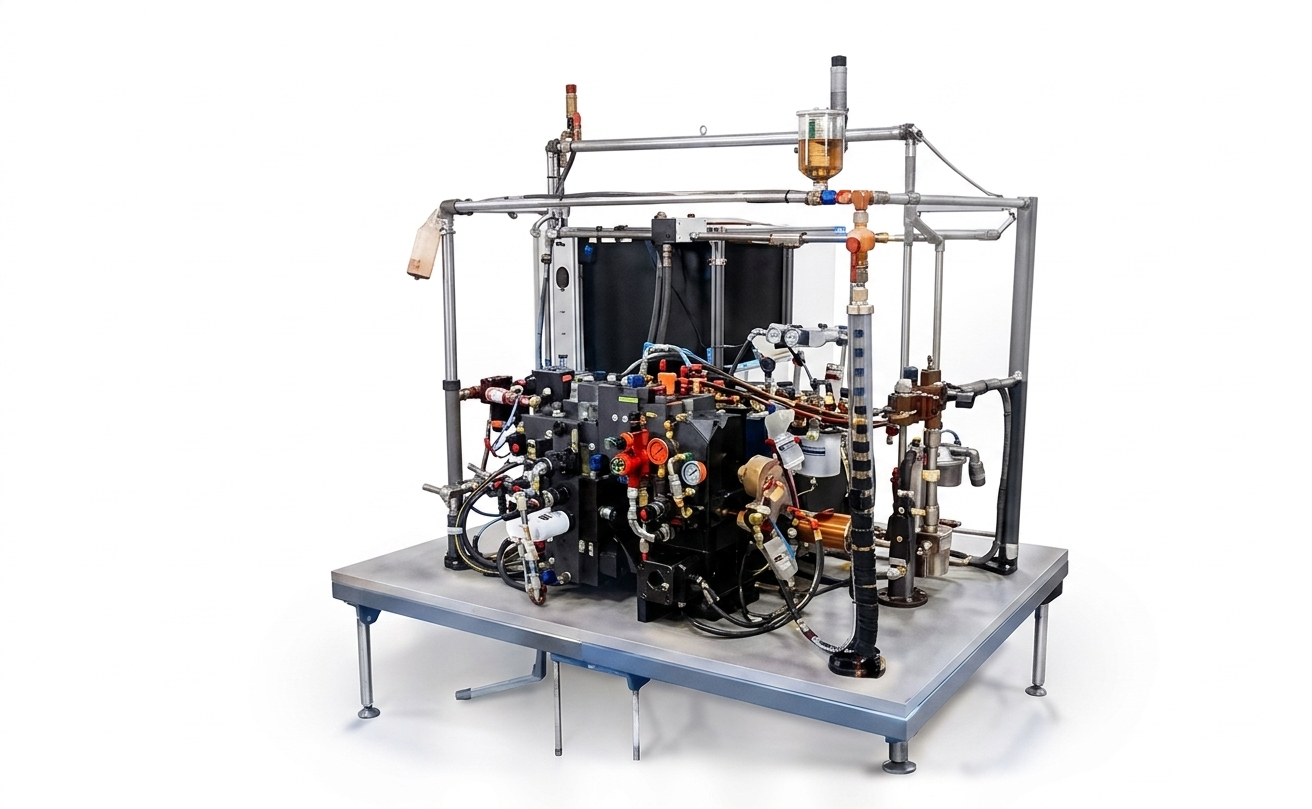

Engineered for High-Performance Hydraulic Testing
Technics A&T pump and motor test systems combine precision hydraulic control, electric drive technology, fluid conditioning, and high-speed measurement to support demanding production and laboratory test requirements.
Technical Capabilities
- Pressure
Up to 10,000 PSI*
- Flow
Up to 150 GPM*
- Speed
Up to 11,000 RPM*
- Operating Modes
Open-loop, closed-loop, and bi-directional configurations
- Case Drain
Accurate case-drain flow measurement with pressure monitoring/control options
- Temperature Control
Integrated reservoir / kidney-loop temperature control with closed-loop options
- Filtration
Multi-stage filtration with kidney-loop and high-pressure filtration; particle-counting options
- Measurements
Pressure, flow, torque, speed, temperature, and optional vibration measurement
- Control
Variable-speed drives, proportional controls, and configurable PID-based regulation
Fluid Conditioning & Efficiency
Multi-Stage Filtration
Helps maintain fluid cleanliness and protect the test system and test component.
Charge / Replenishment & Boost Pressure
Supports closed-loop and open-loop testing requirements as configured.
Fluid Heating & Cooling
Maintains target oil temperature for repeatable testing.
Contamination Monitoring
Optional particle counting and fluid-condition monitoring.
Energy-Efficient Operation
Variable displacement pumps and variable-speed drives can reduce unnecessary power consumption across the operating range.
Advanced Control, Automation & Data Acquisition
Advanced Control, Automation & Data Acquisition
Technics A&T integrates robust control and data-acquisition platforms to automate test execution, capture high-speed measurements, simplify operator interaction, and generate traceable test records.
- Recipe-based and user-configurable test sequences
- Automated pass/fail evaluation
- Real-time charts, trending, and graphing
- High-speed data acquisition
- Automatic report generation in formats such as PDF and Excel
- Local or network data storage
- Barcode / serial-number tracking
- LabVIEW expertise and support for other DAQ/control platforms as required
- Remote diagnostics and monitoring options
- ERP/MES integration options, including Oracle and SAP where required
Pump & Motor Types Supported
Gear Pumps
Vane Pumps
Piston Pumps
Axial Piston Pumps
Radial Piston Pumps
Screw Pumps
Gear Motors
Vane Motors
Piston Motors
Axial Piston Motors
Radial Piston Motors
Orbital Motors
Integrated Safety Features
Emergency Stop Systems
Quick shutdown in critical situations.
Over-Pressure Protection
Pressure relief and system protection.
Safety Interlocks
Doors, guards and safety circuits.
Guarded Test Enclosures
Protect operators and equipment.
Hydraulic Fault Detection
Monitor for leaks, over-temp and faults.
Temperature Protection
High/low temperature monitoring.
Alarm & Warning Systems
Visual and audible alerts.
Automatic Test Shutdown
Safe and controlled system shutdown.

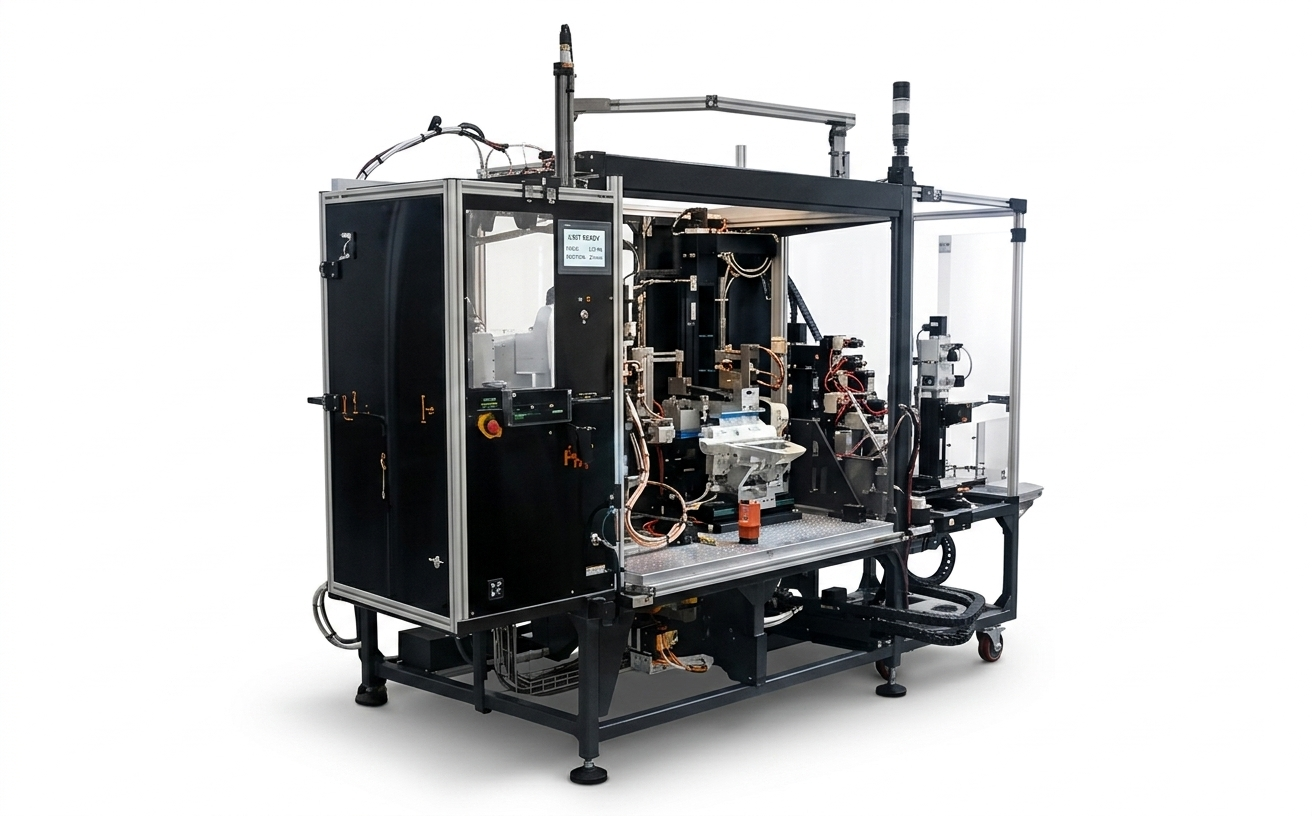

Custom-Engineered Pump & Motor Test Solutions
- Manual systems
- Semi-automated systems
- Fully automated production systems
- End-of-line test systems
- R&D and laboratory systems
- Multi-station test cells
- Specialized fixtures and quick-change interfaces
- Custom software and data integration
- Future expansion and scalable architecture
Ready to Discuss Your Hydraulic Pump or Motor Testing Application?
Tell us about your component, operating range, test requirements, and production needs. Our engineering team can help define the right test-system configuration for your application, tailored to your requirements.
