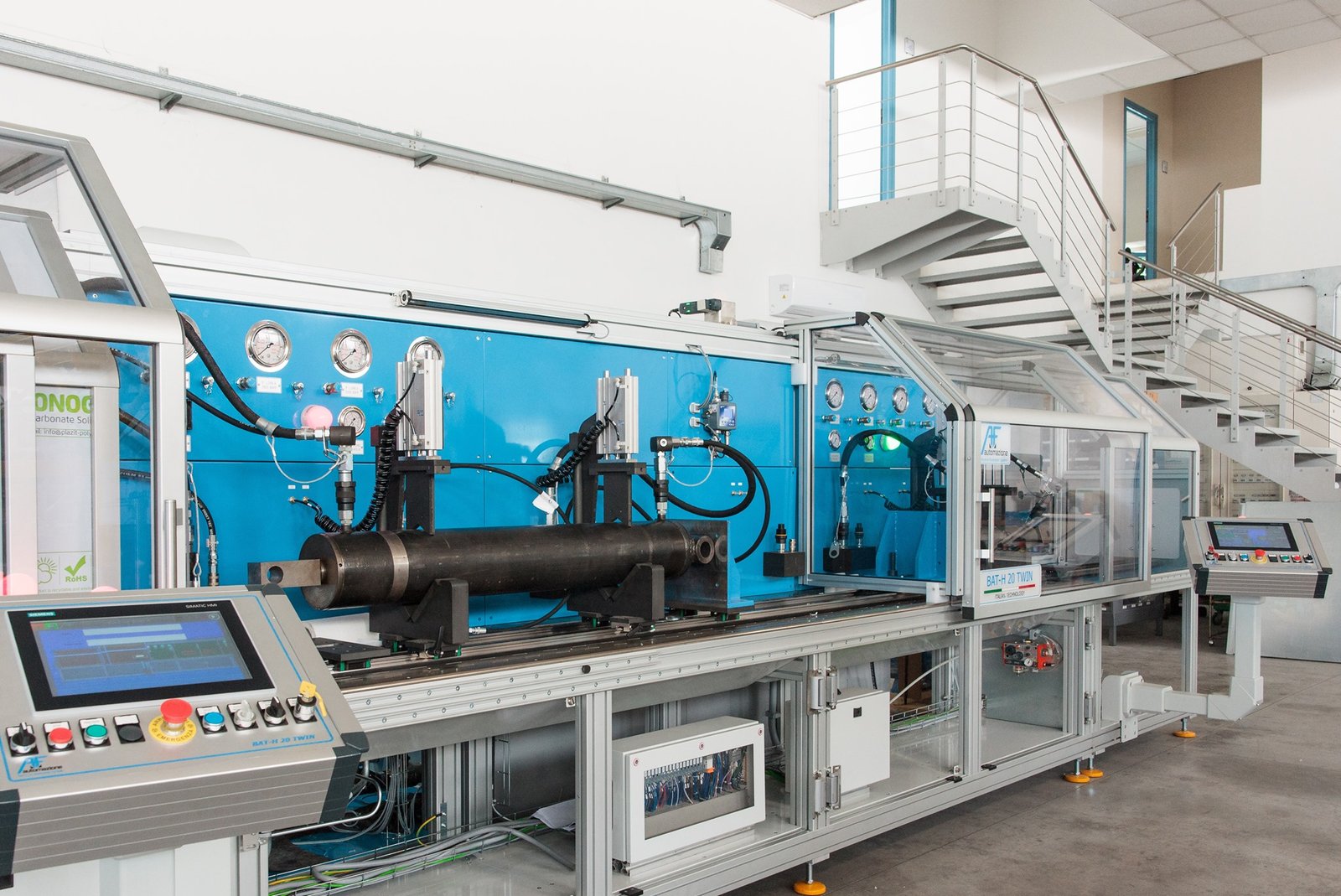

Pneumatic Cylinder Test Systems

Automated testing systems for pneumatic cylinder production and quality control.
REQUEST A QUOTE
TALK TO AN ENGINEER

KEY CAPABILITIES

Multi-cylinder testing capabilities

Leak testing

Functional testing

Cycle testing

Breakaway force testing

Position and speed monitoring

Barcode traceability

Automatic pass/fail results

PDF/Excel reports

PLC and LabVIEW controls

Touchscreen HMI

CYLINDER COMPATIBILITY

CYLINDER TYPES SUPPORTED
NFPA (Tie Rod)

Standard NFPA style cylinders

Mill Type

Heavy duty mill duty cylinders

Profile

Compact profile cylinders

Round Body

Round body cylinders

ISO/VDMA

ISO 15552/VDMA 24562

Custom

Other types available upon request

Cycle time optimized for production testing.

SAFETY FEATURES

  • Polycarbonate safety enclosure
  • Door interlocks
  • Secure pneumatic clamping
  • Operator safety controls

AUTOMATION & REPORTING

The system automatically runs the test sequence, records data, displays live results, and generates complete test reports. Reports include test data, pass/fail status, barcode information, and operator/test details.

CUSTOM OPTIONS

Each system can be configured for your specific cylinder types, test requirements, fixtures, reporting format, and production layout.

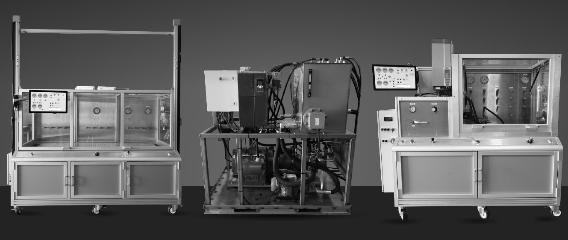

Pneumatic Cylinder Test Systems

Advanced automated testing for pneumatic cylinders with leakage, cycle, functional, and breakaway force testing.
  • Tests up to 5 cylinders simultaneously
  • Comprehensive leakage & functional testing
  • PLC LabVIEW based automation
  • Integrated safety & traceability
  • Automatic pass/fail evaluation & reporting
Request information
Contact engineering

CAR UP TO 5 CYLINDERS SIMULTANEOUSLY

LEAKAGE & BREAKAWAY FORCE TESTING

BARCODE TRACEABILITY

22" TOUCHSCREEN HMI

AUTOMATED REPORTING

Key Features

Improve safety

Safety compliance

Extend equipment life

Increase testing standards

Reduce downtime & maintenance costs

Modernize control systems

Extend equipment life

Reduce downtime & maintenance costs

Modernize control systems

Safety compliance

Testing capabilities

Functional & cycle testing

Pressurizes each side of the cylinder to verify full stroke operation.

Leakage testing

Pressure decay and mass flow leakage testing with high-speed detection.

Breakaway force testing

Ramps pressure to detect piston movement and calculate breakaway force.

Position & speed monitoring

Laser-based measurement system for piston position and speed.

Cylinder compatibility

Bore size range

1.5" to 6.0"

Maximum stroke length

36"

Cylinder type

standard NFPA

Testing stations

up to 5 cylinders simultaneously

Technical specifications

Parameter

  • Stations
  • Bore Size Range
  • Maximum Stroke Length
  • Leakage Detection Methods
  • Min Detectable Leak Rate
  • Isolation Valve Leakage Rate
  • Pressure Measurement Accuracy
  • Pressure Response Time
  • HMI
  • Control System
  • Data Storage
  • Safety Enclosure
  • Cycle Time Goal

Capability

  • Up to 5 cylinders simultaneously
  • 1.5" to 6.0"
  • 36"
  • Pressure Decay, Mass Flow
  • 0.02 SCCM
  • 0.1 SCCM @ 1000 psig (N₂)
  • 0.1% Full Scale
  • 200 mS
  • 22" Touchscreen
  • PLC + LabVIEW
  • Local PC or Network
  • 14" Polycarbonate Shield
  • < 90 seconds per cylinder (size dependent)

System Overview

automation & data acquisition

PLC-controlled system integrated with Technics’ LabVIEW-based software for real-time monitoring, automated sequencing, graphing, and report generation.

key features

  • automated test sequencing & recipe management
  • barcode-driven part identification
  • real-time data acquisition & visualization
  • automatic pass/fail evaluation
  • graphing of pressure, position, speed & leakage
  • auto-generated reports (PDF/Excel)
  • data storage to network or local drive

Test setup & recipe management

Easy test configuration with barcode-driven recipe management for faster and more accurate testing procedures.

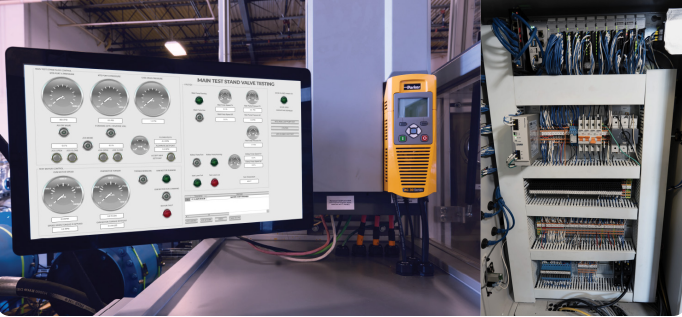

Real-time monitoring

Live data visualization, gauges, and system status monitoring during testing operations.

Graphing & analysis

Real-time graphing and analysis for pressure, position, speed, and leakage data during testing operations.

Report generation

Automatically generated reports with complete test results, data summaries, and pass/fail status evaluation.

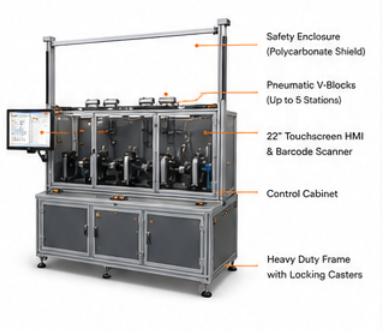

Safety Features

  • vertical sliding polycarbonate safety enclosure
  • electronic HMI door lockout with interlock
  • pneumatic V-block clamping secures cylinders during testing
  • safety interlocks prevent operation when door is open
  • designed for operator safety and system protection

Customization & Flexibility

Our pneumatic test systems are fully configurable to meet specific testing requirements.
  • custom fixture & clamping options
  • custom test routines & parameters
  • multiple cylinder sizes & configurations
  • custom reporting formats
  • seamless integration into existing production lines

Technics Assembly & Test

Pneumatic Cylinder Test Systems

Complete product catalogue featuring testing capabilities, automation architecture, safety systems, software integration, and customization options for pneumatic cylinder applications.

Pages

32 Pages

Format

PDF Document

File Size

6.8 MB

Updated

March 2026

View Full Catalogue
Download PDF

Other Resources

Technical Datasheet

Need More Information?

Our engineering team is ready to help you configure the right solution for your application.
Request Quote
Contact Engineering

Talk to an Engineer

+1 (847) 903-2040

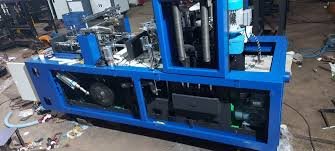

Introduction:

The objective of this information is to clearly define the scope of the potential supply, taking into account a modular system concept composed of:
  • a first automatic station dedicated to rod sub-assembly, and
  • a second automatic station, either separate or integrated, for the complete cylinder assembly.
To prepare a technically accurate and commercially aligned proposal for an automated assembly system for hydraulic and pneumatic cylinders, preliminary production data is required. This information will define the scope of supply and support the development of a modular and scalable system architecture aligned with your manufacturing requirements. The collected data will be used to properly size the equipment, determine the appropriate automation level, establish cycle time targets, and configure the system to meet current and future production demands. This structured approach enables the development of a reliable, flexible, and scalable automated assembly solution tailored to your production environment.

General Production Information:

  • Annual and/or weekly production volumes (overall and by cylinder type);
  • Expected takt time or productivity targets.
  • Production batch size (high mix / low volume vs. standardized production);
  • Number of shifts per day:
